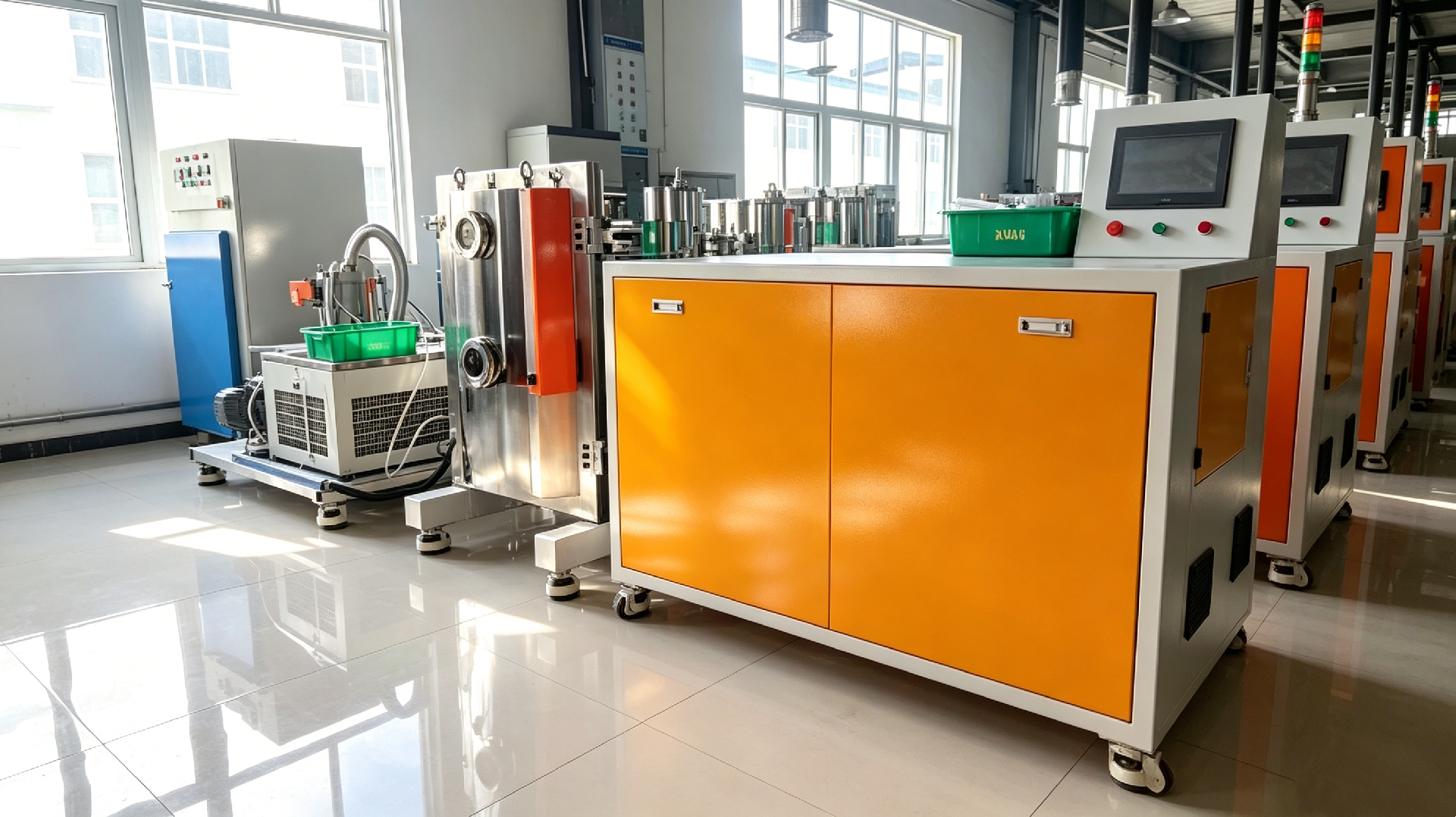

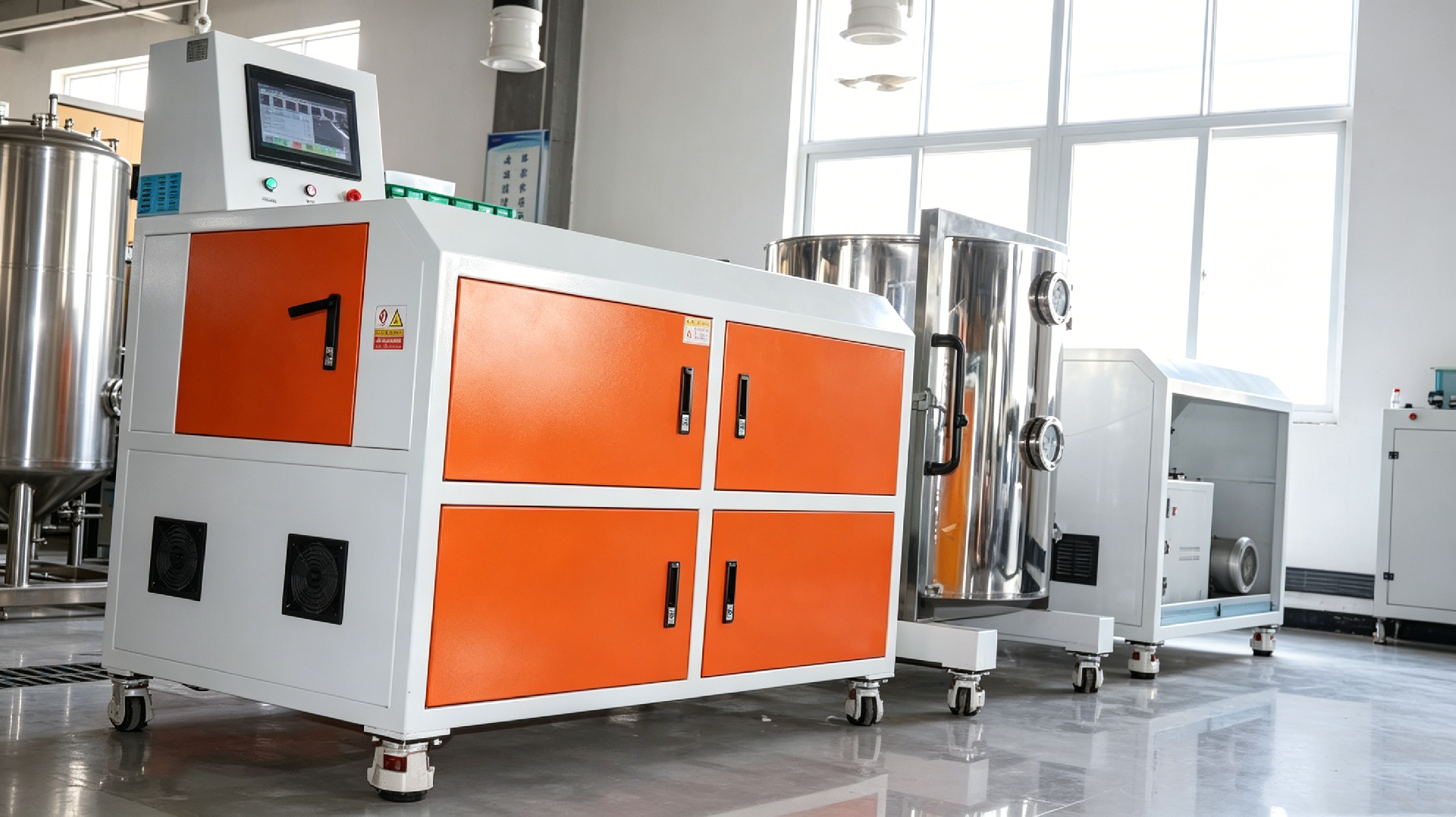

Parylene Vacuum Coating Machine

Chamber Volume (Effective Coating Space)	20 L
Chamber Inner Dimension (Inner Dia. × Height)	Approx. Φ250 mm × 400 mm (Customizable)
Ultimate Vacuum	≤ 5 Pa (Typical value: 1–3 Pa)
Working Vacuum Range	10–50 Pa (Adjustable per process stage)
Pump System	high-performance vacuum pump
Sublimation Oven Temperature Range	120–180°C, Temperature control accuracy ±1°C
Cracking Oven Temperature Range	650–700°C, Temperature control accuracy ±2°C
Deposition Zone Temperature	Ambient to 40°C (Natural cooling or air cooling as standard)
Material Utilization Rate	35% – 50% (Depends on process optimization)
Cleanliness Class	ISO Class 6 (Class 1000) or higher (Ultra-clean design optional)
Control System	PLC + Touch screen
Data Logging	Real-time recording & export of parameters including temperature, pressure, time, etc.
Power Supply	Single/Three-phase AC 220V/380V, 50 Hz, Power consumption approx. 6–8 kW
Overall Equipment Dimension (with stand)	Approx. L900 × W800 × H1600 mm
Net Weight	≈ 230 kg

Online Contact Get Price

Parylene is a transparent, colorless polyester protective material suitable for vacuum deposition at room temperature. While vacuum deposition pressure is typically below 10⁻⁵ Torr, the Parylene process operates at around 0.1 Torr. Coating thickness can be precisely controlled between 1 and 100 microns. This coating was patented in the US in the early 1960s and was first applied to US military printed circuit boards, aerospace, and microelectronic components for underwater launch systems. In 1972, it was incorporated into the US Military Standard: MIL-I-46058C.

Parylene utilizes a unique Chemical Vapor Deposition (CVD) process, where active small molecules grow into a fully conformal polymer film on the substrate surface. It can coat surfaces of any shape, including sharp edges, cracks, and internal surfaces.

This room-temperature deposited thin film (0.1-100 microns) is uniform, dense, pinhole-free, transparent, stress-free, additive-free, and non-damaging to workpieces. With its excellent electrical insulation and protective properties, it stands as one of the most effective contemporary coatings against moisture, mold, corrosion, and salt spray.

Product Form

Equipment Model/Main Parameters	JYP-300	JYP-550	JYP-650	JYP-1000	Customized on Demand
Voltage	Three-phase 380V 50Hz
Power	3KW	5KW	8KW	12KW	Customized on Demand
Overall Dimensions	200015001000mm		300018001500mm
Chamber Dimensions	ø300*320mm	ø550*700mm	ø650*800mm	ø750*900mm	Customized on Demand
Applicable Materials	Model: Parylene N/C/D/F
Film Formation Rate	Type C ≥5μm/h, Type N ≥0.8μm/h, Type D ≥5μm/h, Type F ≥5μm/h
Deposition Thickness	0.1-100μm		0.1-50μm
Coating Thickness Uniformity	Better than 2%		Better than 5%
Chamber Vacuum Degree	≤3.0*10-2 Torr
Ancillary Equipment	1. One set of surface pretreatment coupling agent process to promote the adhesion between Parylene film and substrate. 2. The chamber is equipped with fixtures, allowing arbitrary selection of roll plating, swing plating, and tuning plating.
Safety Equipment	The equipment has a self-locking function. In case of any abnormality during operation, the equipment will alarm and stop running.
Main Structure	Mainly composed of vacuum pumping and measuring system, vacuum chamber system, evaporation chamber, pyrolysis chamber, deposition chamber heating system, high-temperature quartz tube system, cold trap filtration system, PLC control system, and auxiliary systems.

Note: Other dimmension and performance can be customized

Product Application

PCB Coating：Parylene's vapor deposition enhances circuit integrity and eliminates moisture, metal ions, and pollutants without altering component functions like resistance. It effectively protects sensitive electronic elements.
Medical Devices：Providing an inert, insulating, and pinhole-free barrier, Parylene is biocompatible (FDA compliant) and ideal for implants (stents, pacemakers), surgical tools, and disposable medical supplies.
Heritage Preservation：A revolutionary material for archaeology, Parylene reinforces fragile artifacts, fire-damaged paper, and books without changing their appearance, significantly extending their lifespan.
LED Outdoor Lighting：It offers superior protection against water, moisture, aging, corrosion, and UV rays, excelling in harsh conditions like thermal shock and saltwater immersion where other coatings fail.
Sensor Protection：Highly resistant to acids, alkalis, and solvents, Parylene protects sensors in automotive and biomedical fields. Its ultra-thin layer blocks harsh environments without affecting the sensor's size, look, or flexibility.

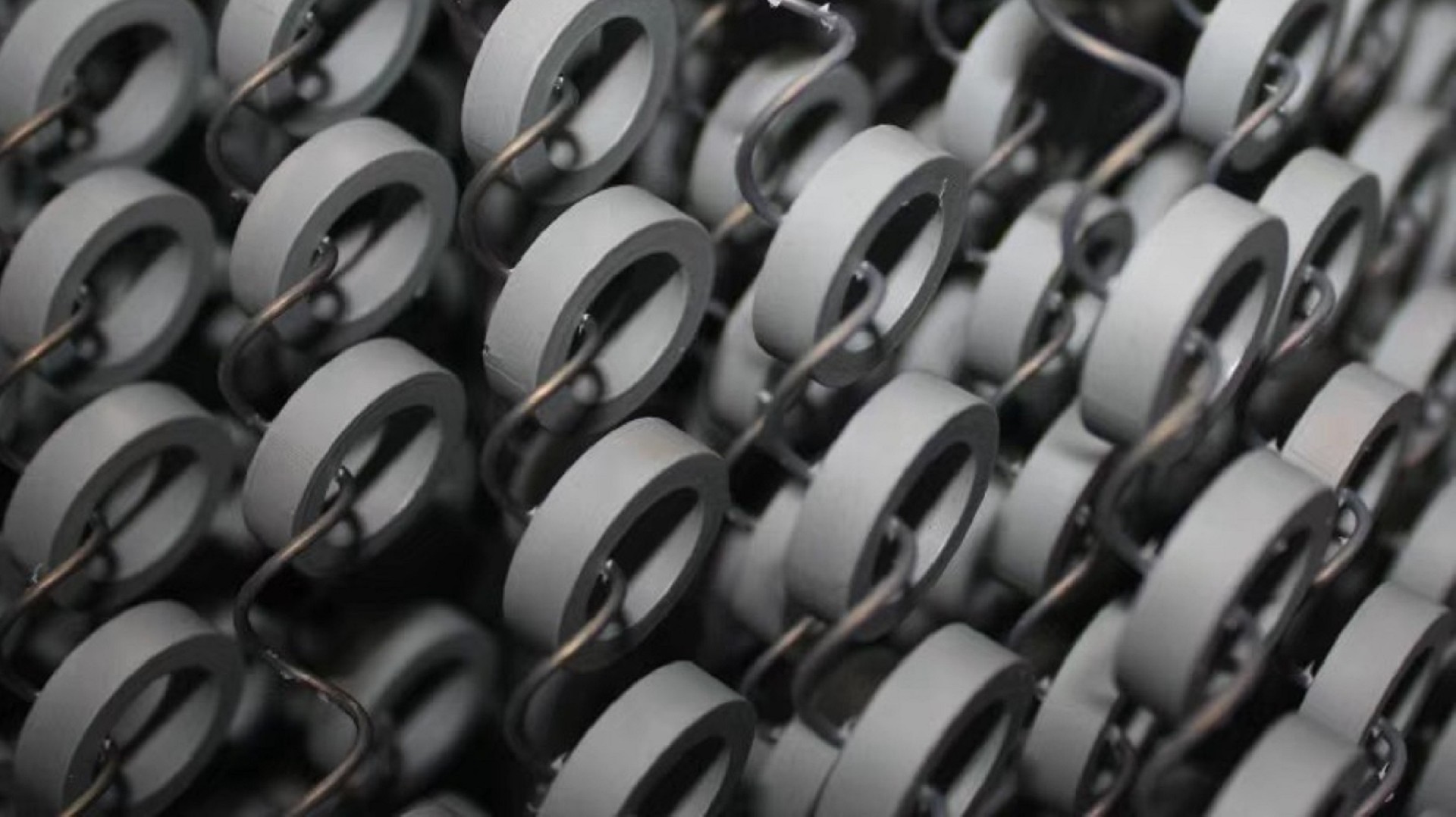

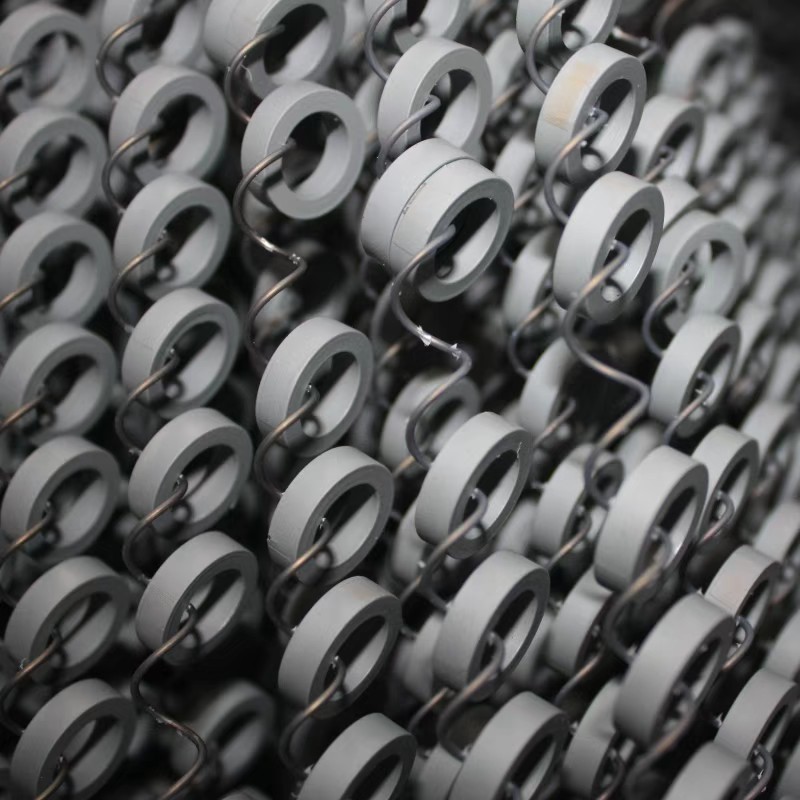

Magnetic Materials：Parylene insulates magnetic windings, prevents friction, and improves dielectric strength. It overcomes the wear and chemical resistance limitations of traditional epoxy coatings.
Silicone Rubber：Coating silicone products (like keypads) enhances print durability and chemical resistance. It is also widely used to lubricate rubber seals and protect them from acids and moisture.
Other Applications：Parylene can be fabricated into precision thin films for specialized uses, such as sealing gaskets in missile launch tubes and coated generator films.

FAQs

Frequently Asked Questions

Question: What information should I prepare when consulting about vacuum coating machines?
Answer: To offer you an accurate quotation and tailored technical solution, please share the following details during your inquiry: equipment model, working chamber size, core technical parameters, coating process requirements, target order volume, as well as special customization demands (if any).
Question: How long will it take to prepare test samples for machine verification?
Answer: Standard sample testing takes 1 to 3 working days after we receive your coating raw materials and process requirements.
Question: What is your production & delivery cycle for vacuum coating equipment?
Answer: Standard off-the-shelf machines can be delivered within 3–10 working days. For customized vacuum coating equipment, we will arrange production immediately once your technical requirements and design drawings are confirmed, and update you with a detailed production schedule synchronously.
Question: Is there a minimum order quantity (MOQ) for your coating machines?
Answer: We adopt flexible order policies with no rigid MOQ requirements. Single-unit orders for testing and bulk mass orders are both acceptable. We can negotiate personalized cooperation terms according to your actual production layout and coating demands to satisfy all your procurement plans.
Question: What payment terms can we adopt for cooperation?
Answer: We support mainstream international payment methods, including T/T (Telegraphic Transfer), PayPal, L/C (Letter of Credit), D/A and D/P. Applicable settlement procedures vary by country and region; feel free to consult our sales team for matched payment plans.
Question: How can I reach your team if I have extra questions?
Answer: You can contact us anytime via email, phone calls or online instant messaging. Our professional sales & technical team will reply to your inquiries at the earliest time.
Question: Why choose our factory as your vacuum coating machine supplier?
Answer:（1）Our vacuum coating equipment gains high recognition and stable reputation in both domestic and global markets with consistent reliable quality;
（2）We own over 8 years of overseas export experience, fully familiar with overseas clients’ production standards and can provide one-stop professional technical & after-sales service;
（3）We strictly guarantee on-time delivery and build an efficient, stable supply chain to avoid delays to your production line.
