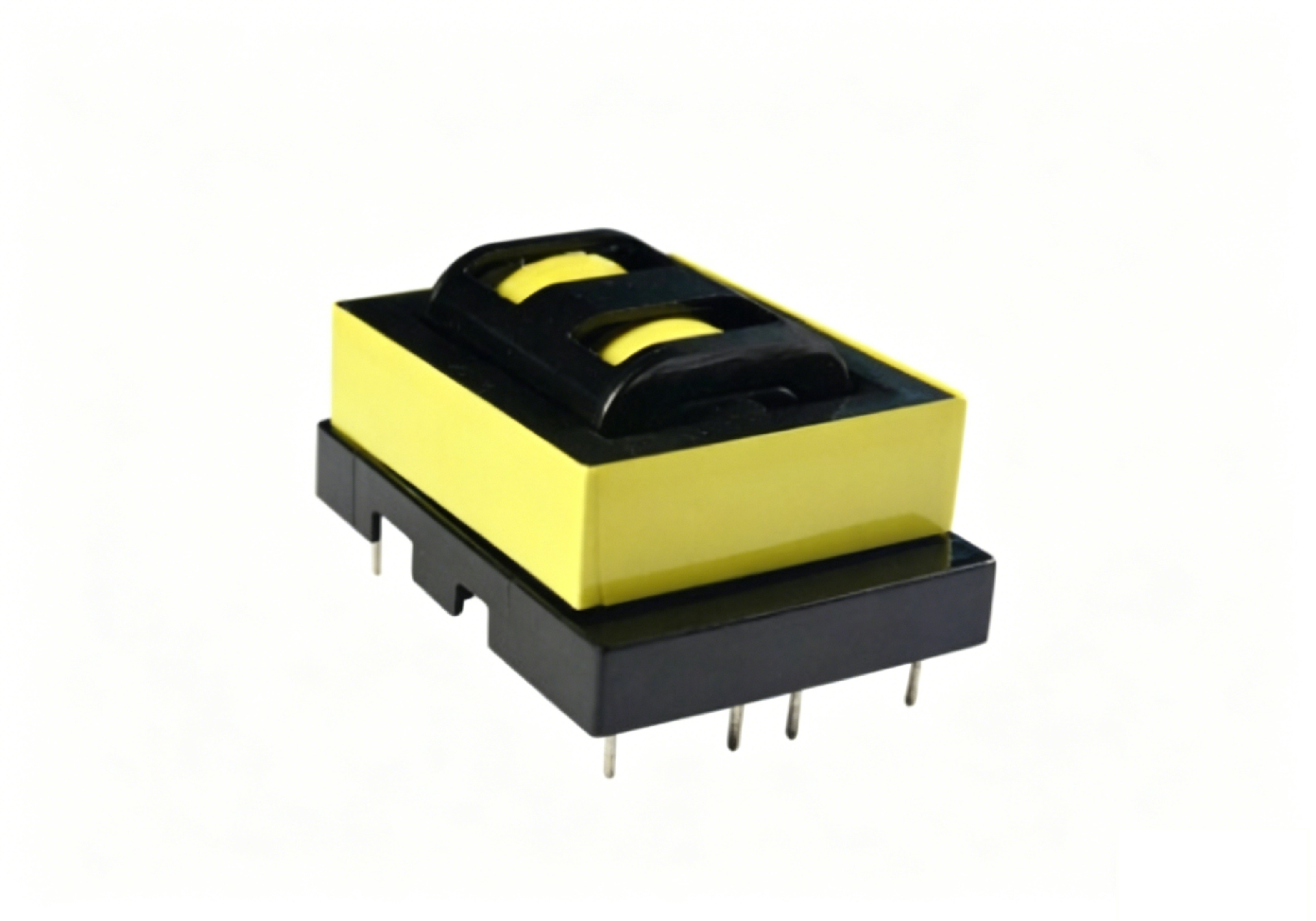

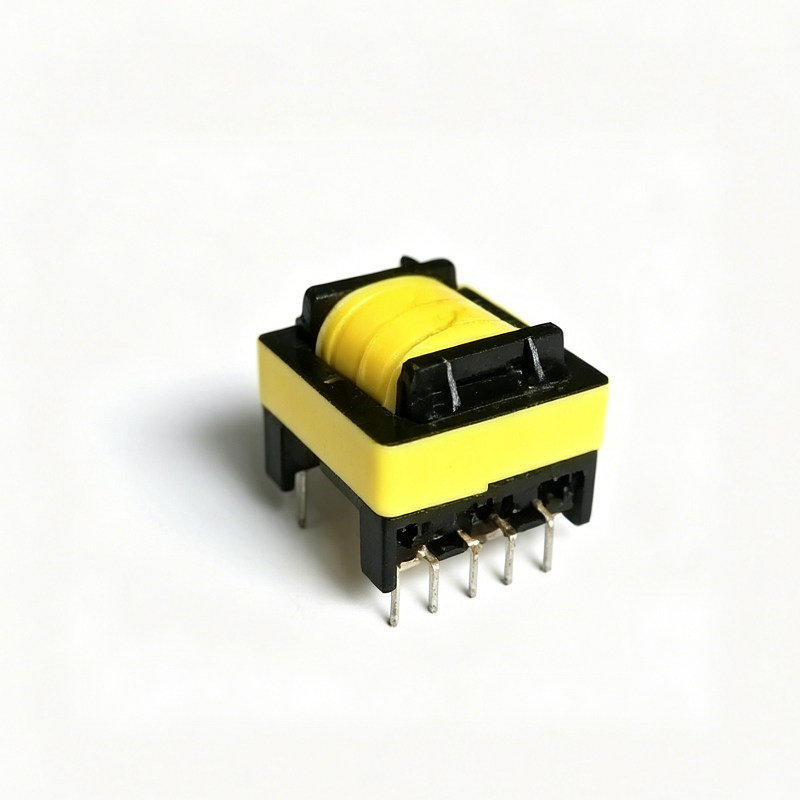

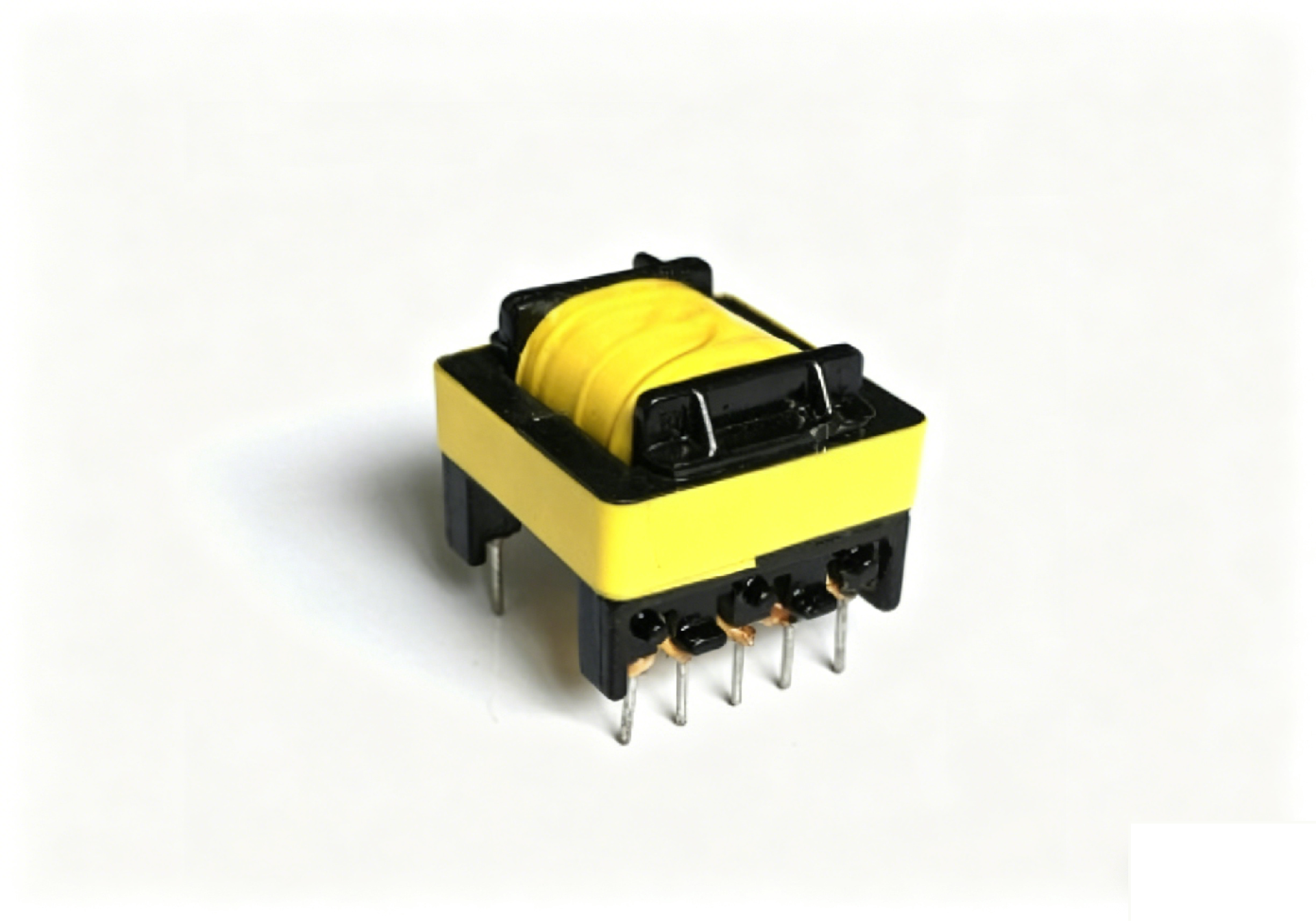

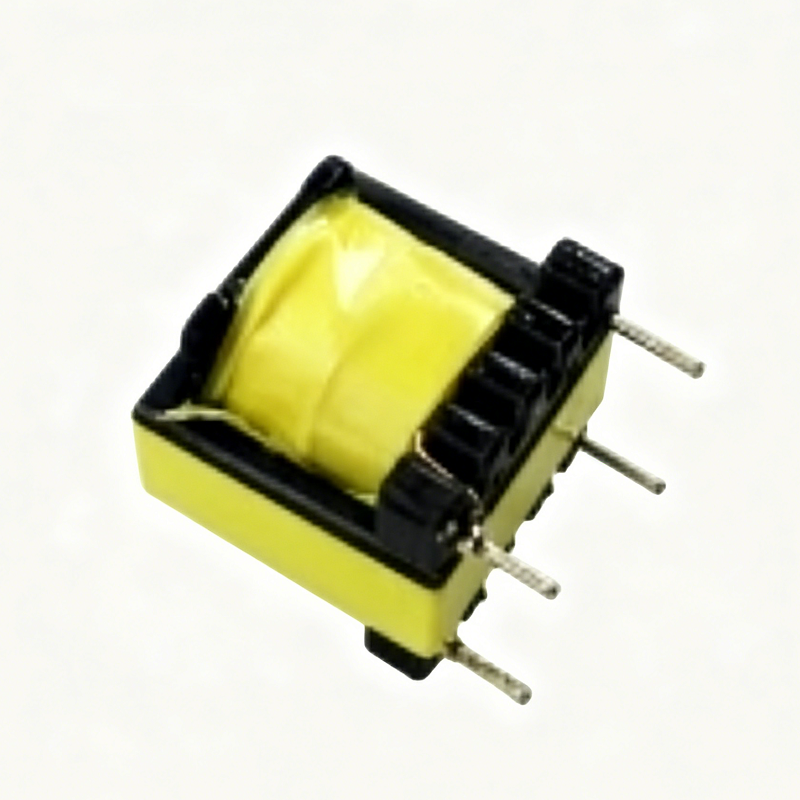

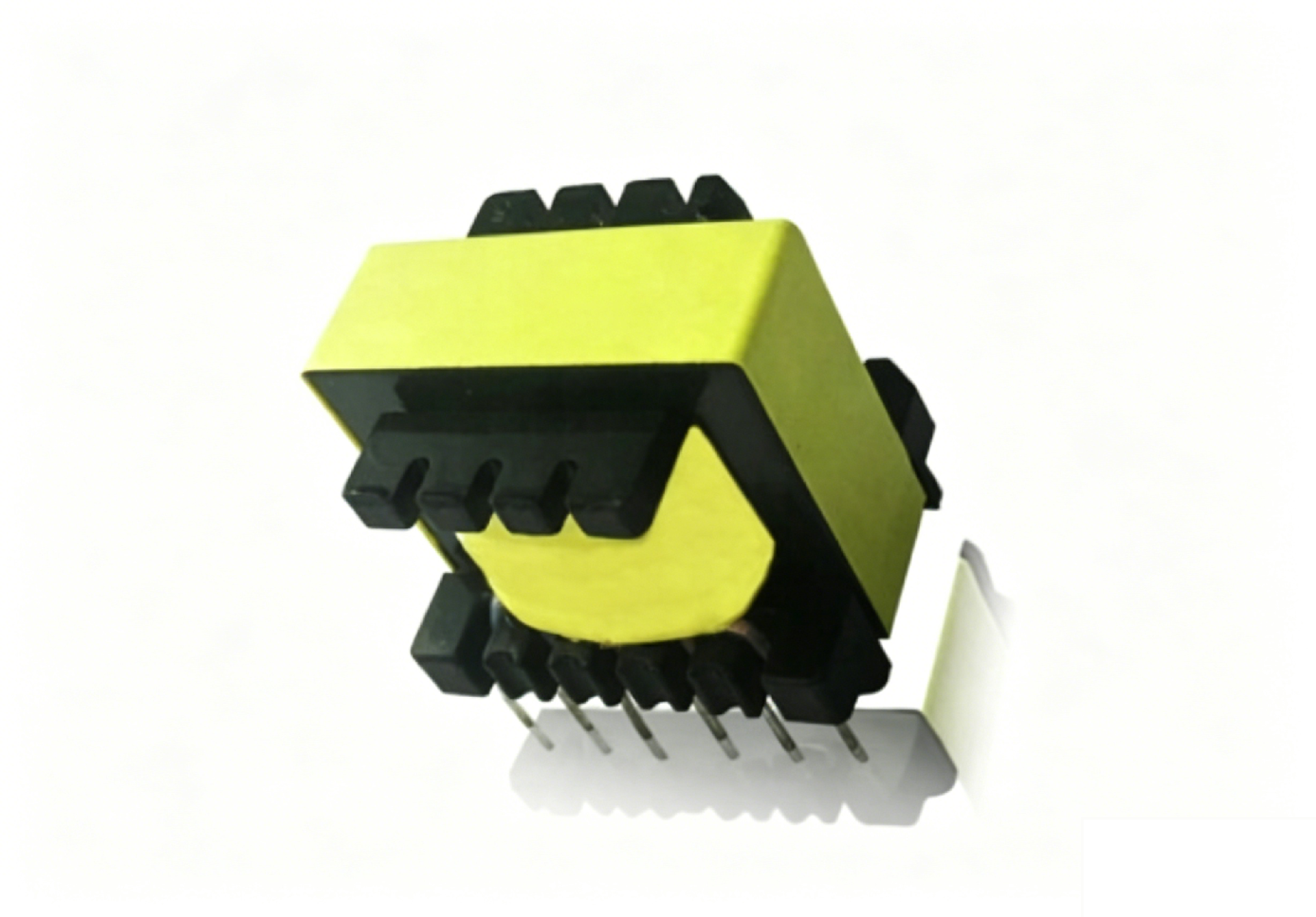

High-frequency transformer coil
| Product Attributes | Supply Capacity and Additional Information | Packaging and Delivery |
|
|
|
| Product Attributes | Supply Capacity and Additional Information | Packaging and Delivery |
|
|
|
New-type designed transformers are primarily used as high-frequency switching power transformers in high-frequency switch-mode power supplies; they are also employed in high-frequency inverter power supplies and high-frequency welding machines as high-frequency inverter transformers. Depending on the operating frequency, they can be further classified into several categories: 10 kHz–50 kHz, 50 kHz–100 kHz, 100 kHz–500 kHz, 500 kHz–1 MHz, and above 1 MHz.
Any high-quality specification of Small, High-Efficiency Transformer — Support Customization
Note: Other dimmension and performance can be customized
Small transformers employ amorphous magnetic cores, precision winding with high-strength enameled wire, and insulating potting and molding, making them the core power components for voltage transformation, electrical isolation, and impedance matching. They feature high conversion efficiency, excellent isolation performance, and a compact footprint, making them well-suited for low-voltage, low-power circuit applications. Customizable options are available for voltage, power rating, and mounting specifications, ensuring stable power supply and safe operation.
New-type designed transformers are primarily used as high-frequency switching power transformers in high-frequency switch-mode power supplies; they are also employed in high-frequency inverter power supplies and high-frequency welding machines as high-frequency inverter transformers. Depending on the operating frequency, they can be further classified into several categories: 10 kHz–50 kHz, 50 kHz–100 kHz, 100 kHz–500 kHz, 500 kHz–1 MHz, and above 1 MHz.
●Small size
● Lightweight
● High transfer efficiency
Precise voltage conversion: high transformation ratio accuracy, stable output voltage, low voltage drop, and compatibility with a wide range of low-voltage power supply requirements. Reliable electrical isolation: multi-layer insulation provides robust dielectric strength, effectively shielding against high-voltage interference and ensuring safe power usage. Low losses and high efficiency: Optimized magnetic circuit and winding design result in low no-load losses and eddy-current losses, with controllable temperature rise. Compact and lightweight: highly integrated design that occupies minimal space, making it ideal for compact devices and PCB-mounted applications. High durability and stability: excellent insulation and moisture resistance, vibration and aging resistance, long service life, and compatibility with harsh operating conditions; Wide customization and adaptability: Power, turns ratio, and pin/lead configurations can all be customized to meet diverse design requirements.
Voltage conversion for switch-mode power supplies, adapters, chargers, and LED driver power supplies; Power isolation for industrial control instruments, security surveillance systems, smart homes, and small household appliances; Communication modules, in-vehicle electronics, and low-voltage isolation transformers for medical devices; PCB-mounted, through-hole, small-power isolation transformer assemblies.
Frequently Asked Questions
Question: What information do I need to provide during the consultation?
Answer: To provide you with the most accurate response, we recommend that you include relevant product information when you submit your inquiry, such as: Model, dimensions, technical specifications, required quantity, etc. 。
Question: How long does it take to produce a sample?
Answer: The preparation time for standard samples is typically 1–3 business days 。
Question: What is the product’s delivery lead time?
Answer: For standard in-stock items, the shipping time is approximately 3–10 days . If you require a custom design, we will, upon confirmation of your requirements, Arrange production as soon as possible. and synchronize the specific production schedule with you.
Q: What is the minimum order quantity (MOQ)?
Answer: We support flexible ordering with no strict minimum order quantity. Specific terms can be negotiated based on your product dimensions and design, and we are committed to meeting a wide range of procurement needs.
Q: What payment methods are supported?
Answer: We accept a variety of international payment methods, including Telegraphic Transfer (T/T), PayPal, Letter of Credit (L/C), Documents against Acceptance (D/A), and Documents against Payment (D/P) Different regions may have different applicable procedures; please feel free to inquire for further information.
Question: If you have any other questions, how should you contact us?
Answer: You can Email, phone call, or online message Please contact us at any time, and we will respond to you as soon as possible.
Question: Select Good friend What is the reason?
Answer: (1) Our products enjoy a strong reputation in both domestic and international markets, Quality widely recognized ；
(2) Possess More than 8 years With extensive export experience, we have a deep understanding of international customer needs and provide professional services.
(3) Commitment On-time delivery , ensuring an efficient and reliable supply chain.
