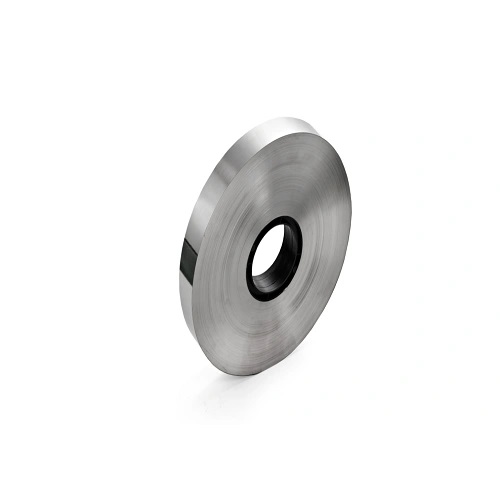

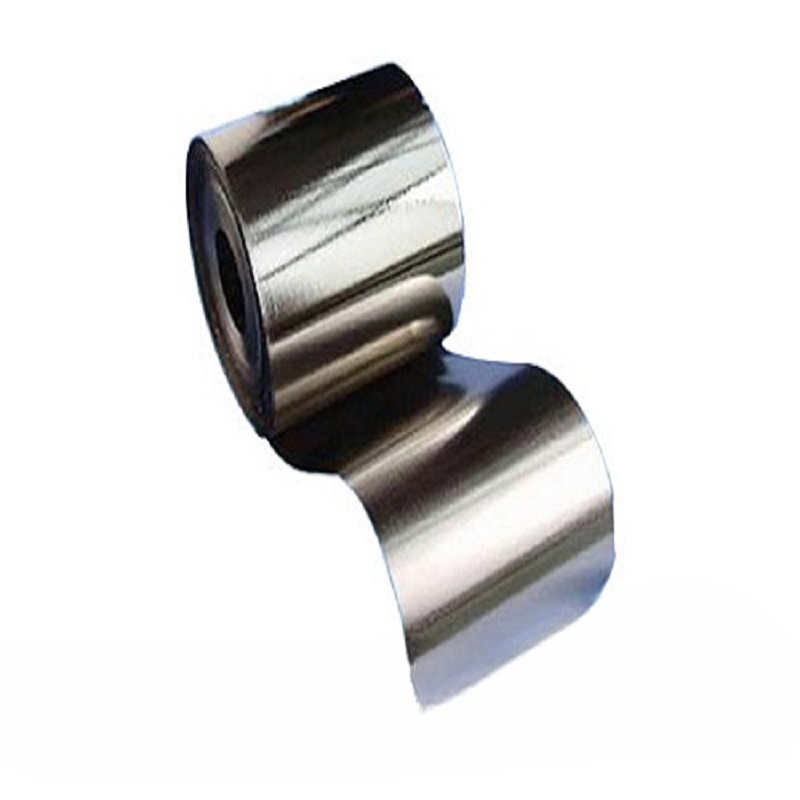

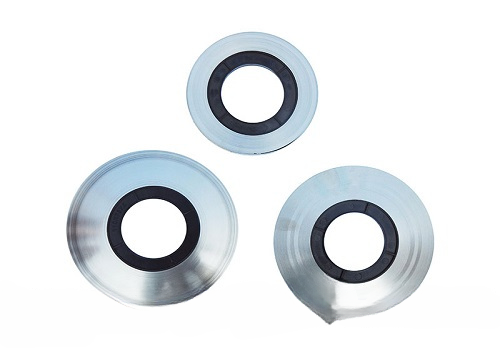

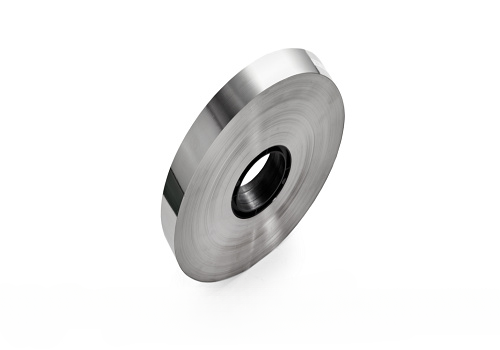

Iron-based amorphous strip
Product attributes
Supply Capacity and Additional Information
Thanks to the following characteristics, iron-based amorphous alloys offer the advantage of low iron losses:
⋅ Thin thickness—only about 1/10 that of grain-oriented silicon steel;
⋅ High resistivity—about twice that of grain-oriented silicon steel;
⋅ Low coercivity—only about 1/3 that of grain-oriented silicon steel.
Features and Advantages
• Due to the following characteristics of iron-based amorphous alloys, they possess the advantage of low iron loss:
⋅Thin—only about 1/10 the thickness of oriented silicon steel;
⋅High resistivity—equivalent to twice that of oriented silicon steel;
⋅Low coercivity—only about one-third that of oriented silicon steel.
• Iron-based amorphous alloys exhibit the highest saturation magnetic flux density among all amorphous alloys, enabling magnetic devices to operate at high magnetic flux densities, offering excellent resistance to saturation, and featuring compact sizes.
• We offer customized products tailored to meet diverse customer needs, featuring low iron loss, overload resistance, and high Bs.
Typical application areas are as follows:
• Iron core for oil-immersed or dry-type power-frequency energy-saving distribution transformers;
• Mid-frequency transformer core;
• Filter, inductor, and reactor cores
• Magnetic shielding foil.
Item | Performance | Item | Performance |
Magnetic Saturation Induced Current Intensity Bs(T) | 1.56 | Saturation magnetostriction coefficient (λs) | 0.000027 |
Curie temperature Tc (℃) | 400 | Density ρ (g/cm³) | 7.18 |
Crystallization temperature Tx (℃) | 515 | Resistivity δ (μΩ·cm) | 130 |
Hardness Hv | 960 | Coercive force Hc (A/m) | <4 |

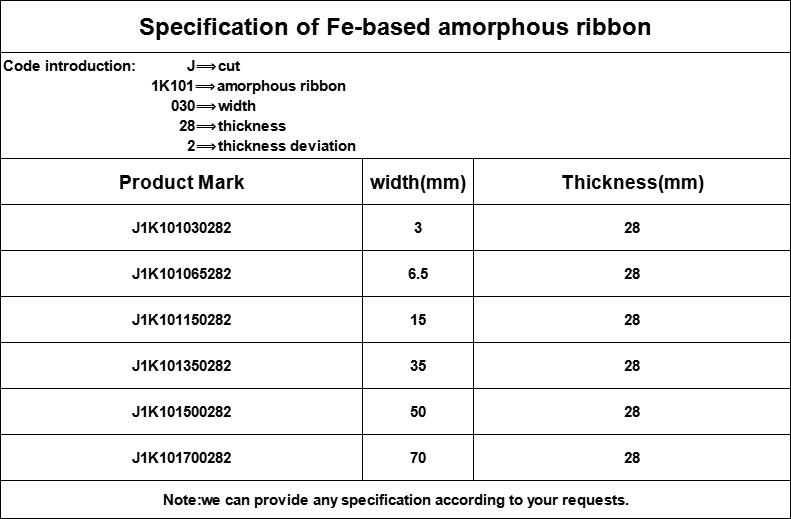

Any high-quality specification Iron-based amorphous strip — Support Customization
Features and Advantages
• Due to the following characteristics of iron-based amorphous alloys, they possess the advantage of low iron loss:
⋅Thin—only about 1/10 the thickness of oriented silicon steel;
⋅High resistivity—equivalent to twice that of oriented silicon steel;
⋅Low coercivity—only about one-third that of oriented silicon steel.
• Iron-based amorphous alloys exhibit the highest saturation magnetic flux density among all amorphous alloys, enabling magnetic devices to operate at high magnetic flux densities, offering excellent resistance to saturation, and featuring compact sizes.
• We offer customized products tailored to meet diverse customer needs, featuring low iron loss, overload resistance, and high Bs.
Typical application areas are as follows:
• Iron core for oil-immersed or dry-type power-frequency energy-saving distribution transformers;
• Mid-frequency transformer core;
• Filter, inductor, and reactor cores
• Magnetic shielding foil.
Item | Performance | Item | Performance |
Magnetic Saturation Induced Current Intensity Bs(T) | 1.56 | Saturation magnetostriction coefficient (λs) | 0.000027 |
Curie temperature Tc (℃) | 400 | Density ρ (g/cm³) | 7.18 |
Crystallization temperature Tx (℃) | 515 | Resistivity δ (μΩ·cm) | 130 |
Hardness Hv | 960 | Coercive force Hc (A/m) | <4 |
Any high-quality specification Iron-based amorphous strip — Support Customization
Note: Other dimmension and performance can be customized
Iron-based amorphous strip It features an ultrafine-grained microstructure with high magnetic permeability, high saturation magnetic induction intensity, low losses, and excellent stability. It can meet the demands of high-frequency, high-current, compact-size, and energy-efficient electronic products. In particular, as a... Low-cost amorphous strip material ， It can replace silicon steel, permalloy, and ferrite, and is widely used in various electronic products.
Amorphous alloy It is a new type of energy-saving material produced by rapidly cooling molten metal at a rate of approximately one million degrees per second. Amorphous alloys have a long-range disordered structure that is completely different from that of crystals. They feature high magnetic permeability and low losses, and are widely used in distribution transformers, inductors, motor stators, and sensors. These alloys can significantly enhance device efficiency and reduce energy consumption.
Frequently Asked Questions
Q: What information do I need to provide when consulting?
Answer: To provide you with the most accurate response, we recommend that you also provide product-related information when you consult us, such as: Model, size, technical specifications, required quantity Wait.
Q: How long does it take to produce a sample?
Answer: The preparation time for standard samples is typically 1–3 business days 。
Q: What is the product’s lead time?
Answer: For standard in-stock items, the lead time for shipment is approximately... 3-10 days If you require a custom design, we will provide it for you after confirming your requirements. Arrange production as soon as possible. and synchronize the specific production cycle with you.
Q: What is the minimum order quantity (MOQ)?
Answer: We support flexible ordering with no strict minimum order quantity requirements. We can tailor our terms specifically to your product dimensions and designs, and are fully committed to meeting your diverse procurement needs.
Q: What payment methods are supported?
Answer: We accept a variety of international payment methods, including: Telegraphic Transfer (T/T), PayPal, Letter of Credit (L/C), Documents Against Acceptance (D/A), and Documents Against Payment (D/P) Different regions may have different applicable methods; feel free to inquire further.
Q: If you have any other questions, how should you get in touch?
Answer: You can through Email, phone, or online message Feel free to contact us anytime, and we’ll get back to you as soon as possible.
Question: Select Good friend What is the reason?
Answer: (1) Our products enjoy a strong reputation in both domestic and international markets, and their quality is widely recognized.
(2) Possess Over 8 years With extensive export experience and a deep understanding of international customer needs, we provide professional services.
(3) Commit to on-time delivery and ensure a highly efficient and reliable supply chain.
