:Home>Products>Amorphous/Nano-crystalline Core>SQ/Oval-shaped Cores

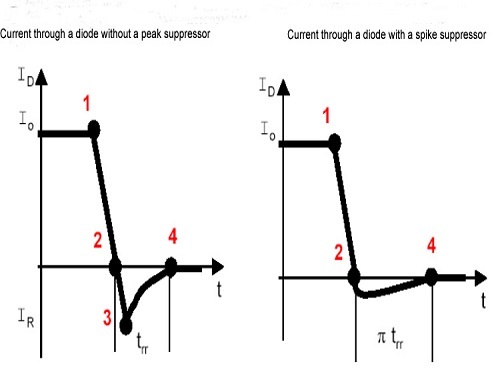

Our company’s flagship magnetic ring boasts an exceptionally high inductance value when the current is zero, effectively suppressing the reverse recovery current generated by diodes. This material reaches saturation with only a minimal current, making it highly suitable for applications such as switch-mode power supplies and variable-frequency drives.

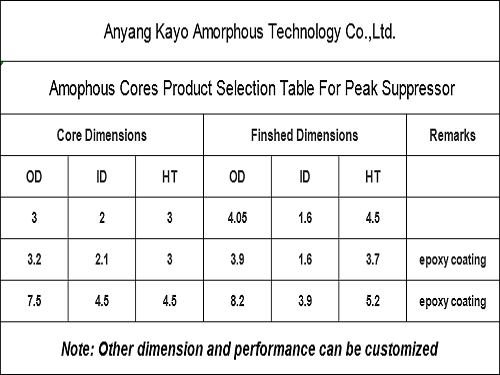

Note: Other dimmension and performance can be customized
Our company’s flagship magnetic ring boasts an exceptionally high inductance value when the current is zero, effectively suppressing the reverse recovery current generated by diodes. This material reaches saturation with only a minuscule current, making it highly suitable for applications such as switch-mode power supplies and variable-frequency drives.
Item Nano-high-saturation-core Permalloy magnetic core Silicon steel core Magnetic saturation induction intensity Bs(T) 1.25 0.76 2.03 Curie temperature Tc (℃) 570 400 740 Density ρ (g/cm³) 7.2 8.85 7.65 Stacking factor ≥0.75 0.9 0.95 Initial permeability (μ₀) 40,000 to 80,000 >80000 1000 Thickness (μm) 0.025–0.035 0.1 0.3 Maximum permeability (μ) >250000 >200000 40000
Frequently Asked Questions
Q: What information do I need to provide when consulting?
Answer: To provide you with the most accurate response, we recommend that you also provide product-related information when you consult us, such as: Model, size, technical specifications, required quantity, etc. 。
Q: How long does it take to produce a sample?
Answer: The preparation time for standard samples is typically 1–3 business days 。
Q: What is the product’s lead time?
Answer: For standard in-stock items, the shipping time is approximately... 3-10 days If you require a custom design, we will provide one for you after confirming your requirements. Arrange production as soon as possible. and synchronize the specific production cycle with you.
Q: What is the minimum order quantity (MOQ)?
Answer: We support flexible ordering with no strict minimum order quantity requirements. We can tailor our terms specifically to your product dimensions and designs, and are fully committed to meeting your diverse procurement needs.
Q: What payment methods are supported?
Answer: We accept a variety of international payment methods, including: Telegraphic Transfer (T/T), PayPal, Letter of Credit (L/C), Documents Against Acceptance (D/A), and Documents Against Payment (D/P) Different regions may have different applicable methods; feel free to inquire further.
Q: If you have any other questions, how should you get in touch?
Answer: You can through Email, phone, or online message Feel free to contact us anytime, and we’ll get back to you as soon as possible.
Question: Select Good friend What is the reason?
Answer: (1) Our products enjoy a strong reputation in both domestic and international markets. Highly recognized for quality ；
(2) Possess Over 8 years With extensive export experience and a deep understanding of international customer needs, we provide professional services.
(3) Commitment Deliver on time Ensure a highly efficient and reliable supply chain.
