Toroidal core
Product Attributes
Supply Capacity and Additional Information
Packaging and Delivery
:Home>Products>Amorphous/Nano-crystalline Core>Toroidal Core
Iron-based amorphous filter inductor cores exhibit outstanding frequency characteristics, superior AC–DC superposition performance, and extremely low core losses. Moreover, their permeability can be flexibly tuned over a very wide range—120 to 1,200 μH—enabling effective handling of bias current ampere-turns and localized magnetic fields across diverse operating conditions. This product is well suited for inductor applications in various high-frequency and AC–DC superposition scenarios, with performance that outperforms silicon–iron–nickel and iron–aluminum powdered magnetic cores.
Application
Choke coil for car audio
PFC calibration inductor
Differential-mode filter and output smoothing filter
DC/DC Converter Filter Inductor
Traditional filter coils and adapter filter coils
High-performance filter inductor core
Item Index Item Index Magnetic Saturation Induction Intensity Bs (T) 1.56 Hardness Hv 960 Crystallization temperature Tx (°C) 515 Curie temperature Tc (°C) 400 Saturation magnetostriction coefficient (λs) 0.000027 Resistivity δ (μΩ·cm) 130

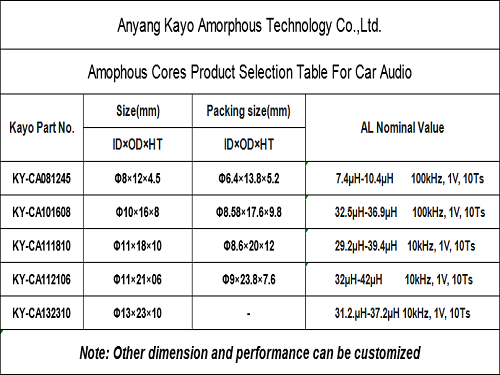

Low-Price Filter Inductor Core Specifications
Application
Choke coil for car audio
PFC calibration inductor
Differential-mode filter and output smoothing filter
DC/DC Converter Filter Inductor
Traditional filter coils and adapter filter coils
High-performance filter inductor core
Item Index Item Index Magnetic Saturation Induction Intensity Bs (T) 1.56 Hardness Hv 960 Crystallization temperature Tx (°C) 515 Curie temperature Tc (°C) 400 Saturation magnetostriction coefficient (λs) 0.000027 Resistivity δ (μΩ·cm) 130
Low-Price Filter Inductor Core Specifications
Note: Other dimmension and performance can be customized
High-quality iron-based amorphous filter inductor core
Iron-based amorphous filter inductor cores exhibit outstanding frequency characteristics, superior AC–DC superposition performance, and extremely low core losses. Moreover, their permeability can be flexibly tuned over a very wide range—120 to 1,200 μH—enabling effective handling of bias current ampere-turns and localized magnetic fields across diverse operating conditions. This product is well suited for inductor applications in various high-frequency and AC–DC superposition scenarios, with performance that outperforms silicon–iron–nickel and iron–aluminum powdered magnetic cores.
Frequently Asked Questions
Q: What information do I need to provide when consulting?
Answer: To provide you with the most accurate response, we recommend that you also provide product-related information when you consult us, such as: Model, size, technical specifications, required quantity, etc. 。
Q: How long does it take to produce a sample?
Answer: The preparation time for standard samples is typically 1–3 business days 。
Q: What is the product’s lead time?
Answer: For standard in-stock items, the shipping time is approximately... 3-10 days If you require a custom design, we will provide one for you after confirming your requirements. Arrange production as soon as possible. and synchronize the specific production cycle with you.
Q: What is the minimum order quantity (MOQ)?
Answer: We support flexible ordering with no strict minimum order quantity requirements. We can tailor our terms specifically to your product dimensions and designs, and are fully committed to meeting your diverse procurement needs.
Q: What payment methods are supported?
Answer: We accept a variety of international payment methods, including: Telegraphic Transfer (T/T), PayPal, Letter of Credit (L/C), Documents Against Acceptance (D/A), and Documents Against Payment (D/P) Different regions may have different applicable methods; feel free to inquire further.
Q: If you have any other questions, how should you get in touch?
Answer: You can through Email, phone, or online message Feel free to contact us anytime, and we’ll get back to you as soon as possible.
Question: Select Good friend What is the reason?
Answer: (1) Our products enjoy a strong reputation in both domestic and international markets. Highly recognized for quality ；
(2) Possess Over 8 years With extensive export experience and a deep understanding of international customer needs, we provide professional services.
(3) Commitment Deliver on time Ensure a highly efficient and reliable supply chain.
