:Home>Products>Amorphous/Nano-crystalline Core>Toroidal Core
Nanocrystalline current transformer cores exhibit high permeability and low cost, making them an ideal material for modern current transformers. They align with the development trends in power electronics and information electronics toward smaller, lighter, and more efficient components, and thus find extensive applications in precision current transformers, zero-sequence current transformers, medium- and high-frequency transformers, and other electrical equipment.
High-Performance CT Core
Item Performance Item Performance Magnetic Saturation Induction Intensity Bs (T) 1.25 Saturation magnetostriction coefficient (λs) 0.000002 Curie temperature Tc (°C) 550 Density ρ (g/cm³) 7.2 Crystallization temperature Tx (°C) 700 Resistivity δ (μΩ·cm) 130 Hardness Hv 880 Thickness (μm) 28 to 35 Initial permeability (μ₀) >120,000 Stacking factor ≥0.75
Specifications of Multifunctional CT Magnetic Cores
High-Performance CT Core
Item Performance Item Performance Magnetic Saturation Induction Intensity Bs (T) 1.25 Saturation magnetostriction coefficient (λs) 0.000002 Curie temperature Tc (°C) 550 Density ρ (g/cm³) 7.2 Crystallization temperature Tx (°C) 700 Resistivity δ (μΩ·cm) 130 Hardness Hv 880 Thickness (μm) 28 to 35 Initial permeability (μ₀) >120,000 Stacking factor ≥0.75

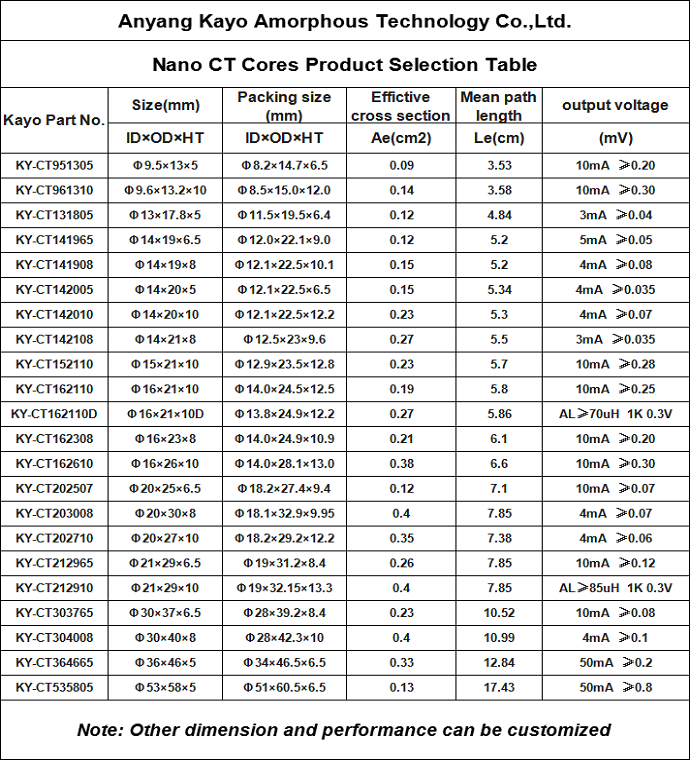

Specifications of Multifunctional CT Magnetic Cores
Note: Other dimmension and performance can be customized
High-quality current transformer core
Nanocrystalline current transformer cores, with their high permeability and low cost, are currently the ideal material for current transformers. They align with the development trends in power electronics and information electronics toward smaller, lighter, and more efficient components, making them widely applicable in precision current transformers, zero-sequence current transformers, medium- and high-frequency transformers, and other electrical equipment.
