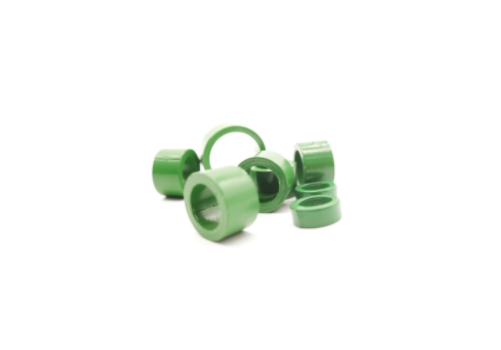

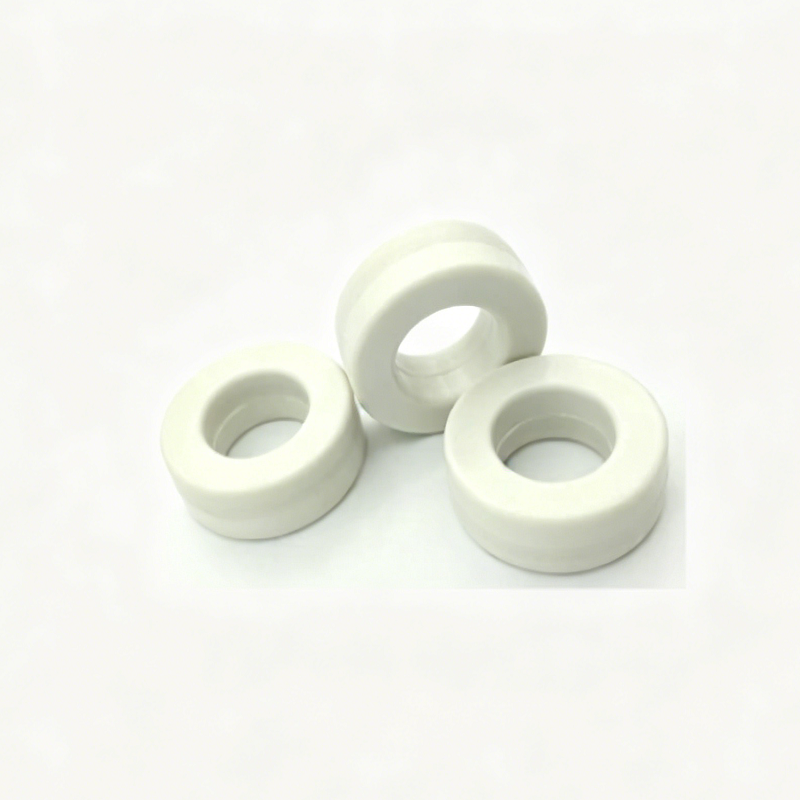

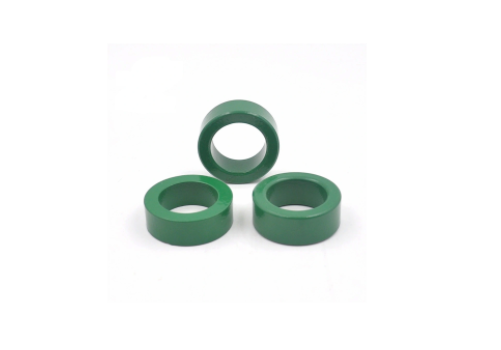

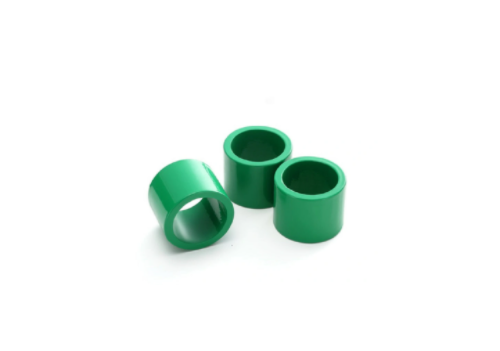

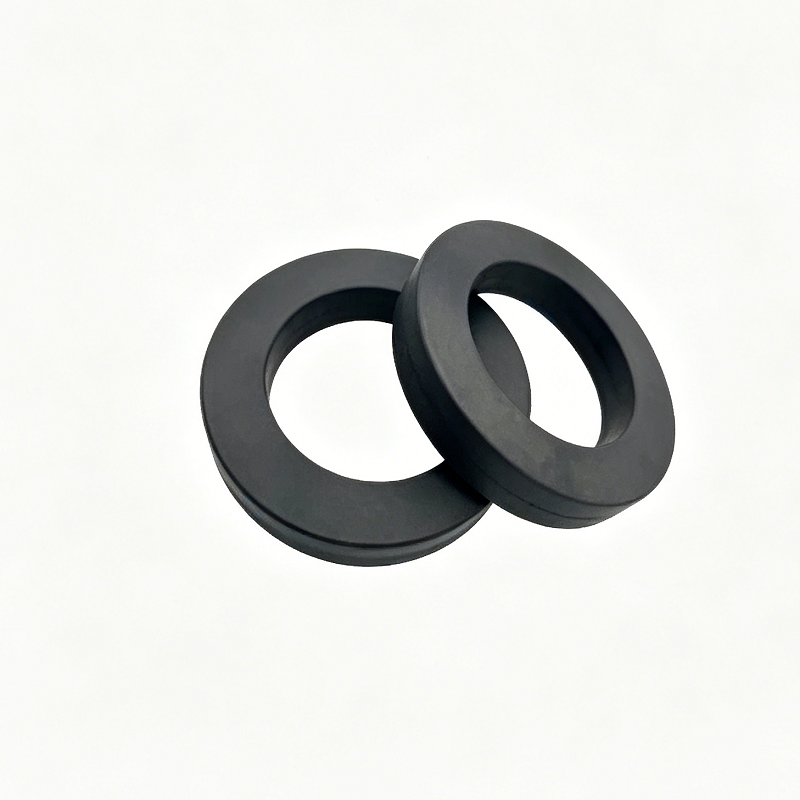

Amorphous Nanocrystalline Encapsulated Magnetic Core
Product Attributes
Supply Capacity and Additional Information
Packaging and Delivery
:Home>Products>Amorphous/Nano-crystalline Core>Toroidal Core
True CMC magnetic cores feature high saturation flux density, enabling significant miniaturization of CMC components; they also exhibit outstanding resistance to unbalanced currents and excellent impedance and temperature stability. Consequently, they are widely used in inverter circuits, variable-frequency drive cores, uninterruptible power supplies (UPS), switch-mode power supplies, EMC filters, and the new-energy sector.
Item Index Magnetic Saturation Induction Intensity Bs (T) 1.2 Curie temperature Tc (°C) 570 Stacking factor (k) ≥0.8 Initial permeability 85000 Permeability μ at 10 kHz 80000 Permeability μ at 100 kHz 20000 Resistivity δ (μΩ·cm) ≥130 Density (g/cm³) 7.2
Item Index Magnetic Saturation Induction Intensity Bs (T) 1.2 Curie temperature Tc (°C) 570 Stacking factor (k) ≥0.8 Initial permeability 85000 Permeability μ at 10 kHz 80000 Permeability μ at 100 kHz 20000 Resistivity δ (μΩ·cm) ≥130 Density (g/cm³) 7.2

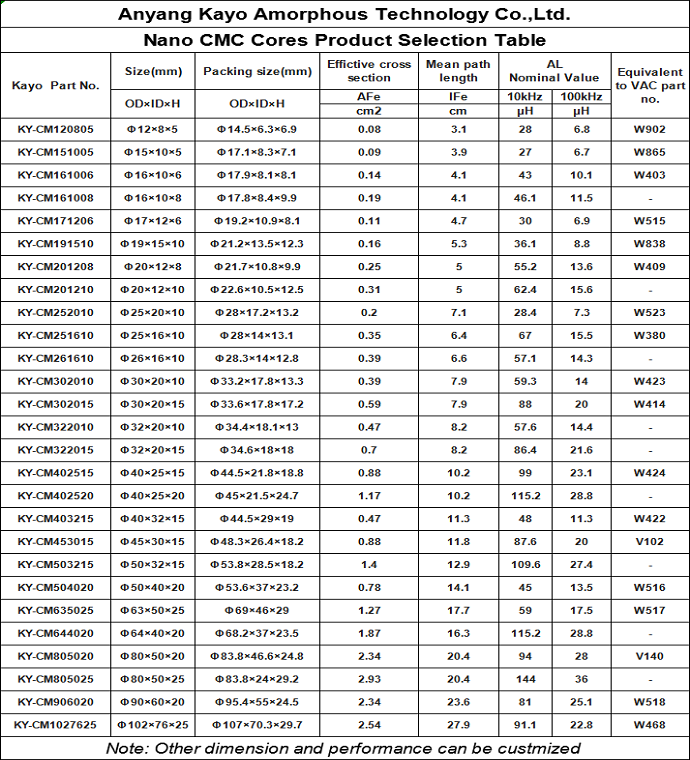

Note: Other dimmension and performance can be customized
True CMC magnetic cores feature high saturation flux density, enabling significant miniaturization of CMC components; they also exhibit outstanding resistance to unbalanced currents and excellent impedance and temperature stability. Consequently, they are widely used in inverter circuits, variable-frequency drive cores, uninterruptible power supplies (UPS), switch-mode power supplies, EMC filters, and the new-energy sector.
Frequently Asked Questions
Q: What information do I need to provide when consulting?
Answer: To provide you with the most accurate response, we recommend that you also provide product-related information when you consult us, such as: Model, size, technical specifications, required quantity, etc. 。
Q: How long does it take to produce a sample?
Answer: The preparation time for standard samples is typically 1–3 business days 。
Q: What is the product’s lead time?
Answer: For standard in-stock items, the shipping time is approximately... 3-10 days If you require a custom design, we will provide one for you after confirming your requirements. Arrange production as soon as possible. and synchronize the specific production cycle with you.
Q: What is the minimum order quantity (MOQ)?
Answer: We support flexible ordering with no strict minimum order quantity requirements. We can tailor our terms specifically to your product dimensions and designs, and are fully committed to meeting your diverse procurement needs.
Q: What payment methods are supported?
Answer: We accept a variety of international payment methods, including: Telegraphic Transfer (T/T), PayPal, Letter of Credit (L/C), Documents Against Acceptance (D/A), and Documents Against Payment (D/P) Different regions may have different applicable methods; feel free to inquire further.
Q: If you have any other questions, how should you get in touch?
Answer: You can through Email, phone, or online message Feel free to contact us anytime, and we’ll get back to you as soon as possible.
Question: Select Good friend What is the reason?
Answer: (1) Our products enjoy a strong reputation in both domestic and international markets. Highly recognized for quality ；
(2) Possess Over 8 years With extensive export experience and a deep understanding of international customer needs, we provide professional services.
(3) Commitment Deliver on time Ensure a highly efficient and reliable supply chain.
